Computergrafik
Textureinstellungen
← 2D Texturen Definieren | ● | 2D Textur Interpolation →
Die Interpolationsart der 2D Textur wird spezifiziert durch:
glTexParameteri (GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);
glTexParameteri (GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
glTexParameteri (GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);
| filter type | filter effect |
|---|---|
| GL_LINEAR | bilinear interpolation |
| GL_NEAREST | nearest neighbor (no interpolation) |
| GL_LINEAR_MIPMAP_LINEAR | bilinear interpolation with mipmapping |
| GL_NEAREST_MIPMAP_NEAREST | nearest neighbor with mipmapping |
Das Verhalten der Texturkoordinaten ausserhalb der Textur wird spezifiziert durch:
glTexParameteri (GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);
glTexParameteri (GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);
glTexParameteri (GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);
| coordinate mapping | effect |
|---|---|
| GL_CLAMP_TO_EDGE | nearest border color is extended to outside |
| GL_CLAMP_TO_BORDER | outside color is explicitly specified |

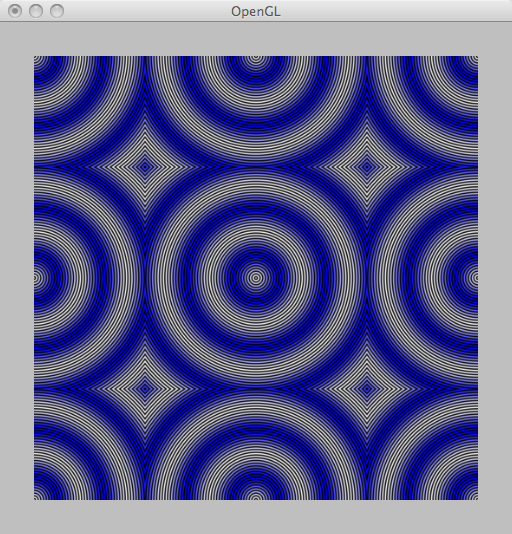

| GL_REPEAT | inside color is repeated as tile pattern |
| GL_MIRRORED_REPEAT | … |
