Multi Planar Reconstruction

Loading A Dicom Image Stack | | Qt&DCMTK Framework

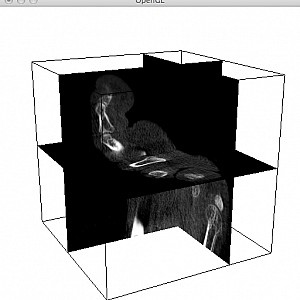

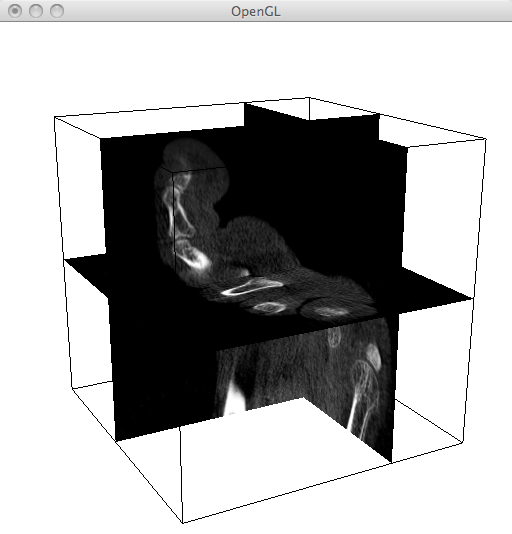

After creating a 3D texture object from the loaded volume data, we render two axis-aligned slices. That is two quads with appropriate texture coordinates with interactive movement of vertical x/z- and y/z-planes and an additional fixed horizontal x/y-plane:

MPR

Live Demo: MPR (T#D04a)
