TF Editor
← Transfer Functions | ● | Emission and Absorption with TF →
A TF Editor is a function curve editor to manually determine transfer functions $\kappa(s)$ and $\rho(s)$.

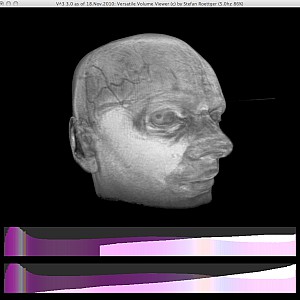

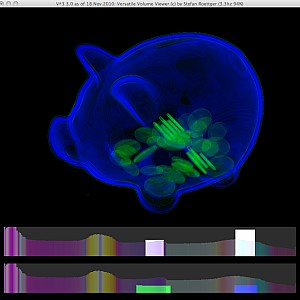

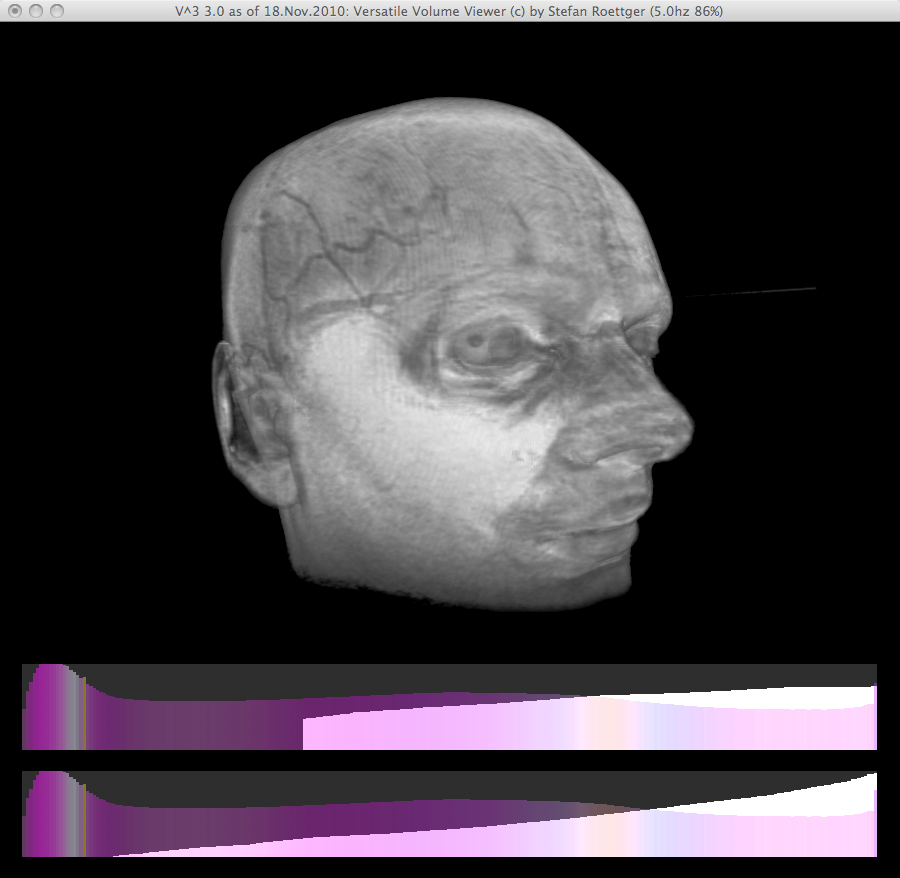

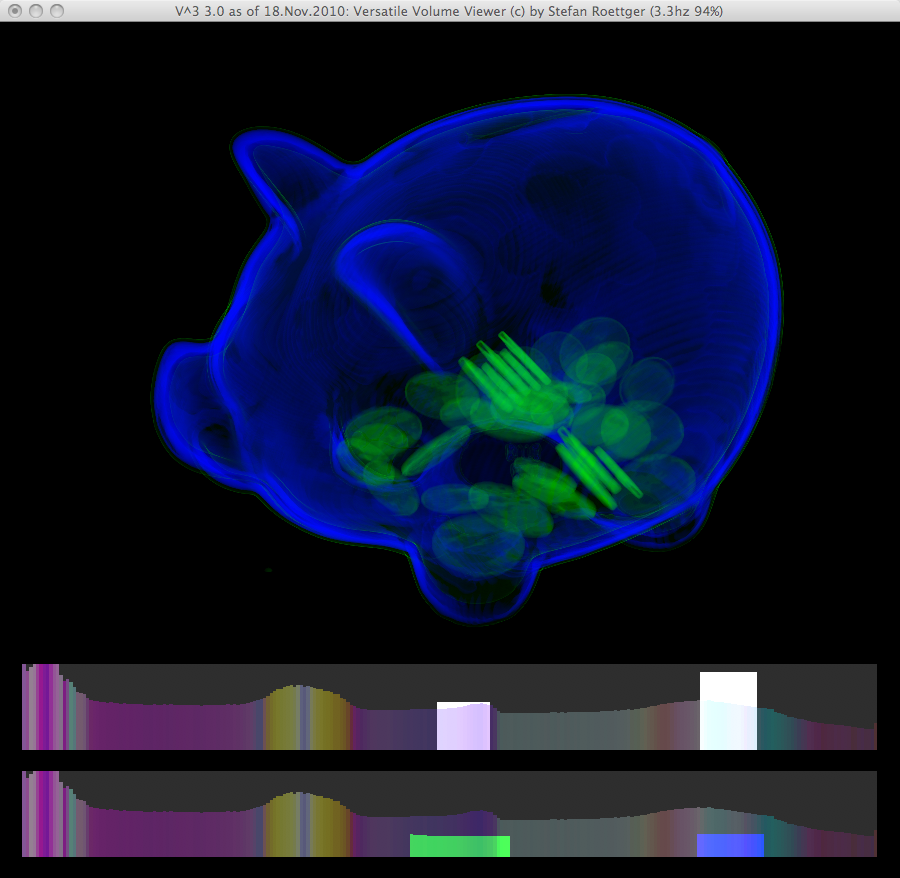

Example using the $V^3$ volume renderer: the two function curves are displayed below the volume:
In the example $TF_A$ is shown as the white top curve $\rho(s)$ and $TF_{RGB}$ is shown as colored bottom curve $\kappa(s)$. Both are displayed with the histogram as background.
